A plug molding project starts with the complete plug, terminal, cable and mold requirements. A C-type label or a stated cavity count cannot establish that a machine is suitable for every plug design.
Define the Plug Assembly
- Plug drawing and revision, destination-market requirements and required finished-product tests.
- Terminal or pin arrangement, cable size and outer dimensions, strain-relief geometry and the areas to overmold.
- Exact molding material and grade, color, additives and supplier processing information.
- Mold drawing, cavities, runner, mounting, opening and part-removal requirements.
- Accepted output target and the sequence for preparation, loading, molding, unloading and inspection.
Review Insert and Cable Location
Confirm how terminals and cable are located, supported and checked before mold closure. Review cable routing, clearance and repeatability through the full work sequence, including any table movement. Fixtures and handling must be assessed with the actual mold and machine arrangement.
Specify the Machine Configuration
Check clamp capacity, mold fit, usable shot, injection capability and the complete material package. If PVC is specified, review the exact compound and compatible plasticizing arrangement; do not assume every screw or general-purpose configuration is suitable.
A C-type machine may be considered where its layout suits the project. Confirm loading access, the protective arrangement and model-specific options. Single-slide, double-slide and rotary arrangements are not automatically available on every model. Four cavities or a particular plug style must be confirmed from the mold and trial, not inferred from a family description.
Agree the Acceptance Checks
Use the actual terminal, cable, material and mold for representative trials. Record part appearance, dimensions, insert position and the specified electrical, mechanical or other finished-product results. Equipment selection does not by itself certify the finished plug for a market.
Buyer Questions
Does a Major Brand Remove the Need for a Trial?
No. Verify the quoted configuration against the actual plug assembly, mold and acceptance requirements.
Can the Machine Alone Guarantee Plug Quality?
No. Material, inserts, tooling, preparation, process control and finished-product verification all remain part of the project.
See the wire overmolding project checklist and quotation scope comparison before finalizing the equipment request.

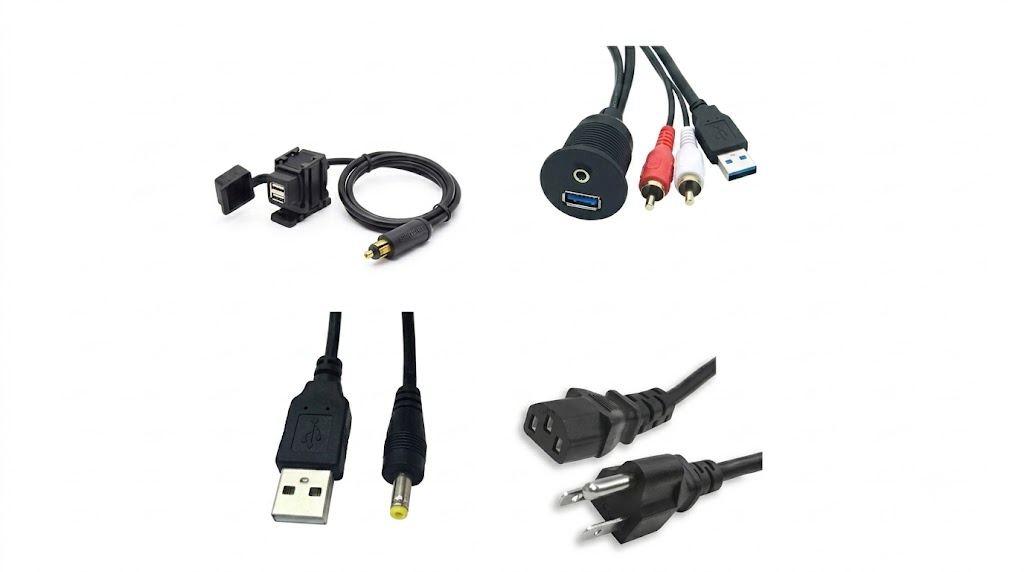

Related Illustration
Confirm the quoted model and configuration separately; an illustration does not establish included equipment or performance.
