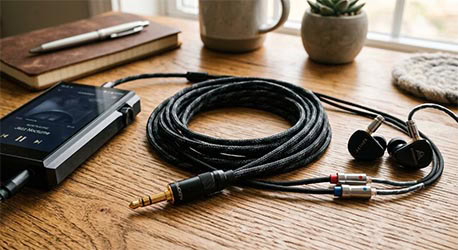

As production technology advances and manufacturing capacity expands, the price of many earphones has become increasingly affordable, offering users incredible value for money. But have you ever wondered how these everyday earphone cables are actually manufactured? To understand the underlying magic, we first need to look at the specialized process that shapes them.
Typically, the outer jacket of an earphone cable is made from thermoplastic elastomers like TPE or TPU, which offer an excellent combination of flexibility and a skin-friendly tactile feel. These soft compounds are processed using high-speed vertical injection molding machines to achieve a seamless finish.
Unveiling the Core Process: Insert Overmolding for Earphone Cables
To achieve that perfectly flush, tightly wrapped texture where the cable meets the connector, modern electronics manufacturing relies on a precise technique called insert overmolding.
Unlike traditional methods that use silicone hot-pressing—which often suffers from poor adhesion, causing the internal wires to shift or peel away over time—the modern vertical injection molding process ensures maximum durability through these key steps:
- Cavity Placement: The operator or an automated robotic arm precisely places the internal wires and delicate metal conductors into the mold cavity (positioned perfectly between the front and rear mold cores).
- High-Speed Injection: The machine screw heats and melts the TPE/TPU compound, injecting it into the cavity at high speed and with absolute pressure control.
- Holding & Cooling: The molten soft plastic completely encapsulates the wires and metal strands, followed by synchronous pressure holding, cooling, and solidifying within the mold.
- Product Ejection: The entire cycle from injection to mold-opening is incredibly rapid, taking only 15 to 30 seconds to yield a fully finished product.
This comprehensive encapsulation ensures that the soft plastic bonds tightly to the surface of the wires. It completely prevents internal slippage, drastically improves the waterproof and dustproof ratings of the cable, and significantly extends the product’s lifespan.
Why High-Speed Vertical Injection Molding is Essential for Cable Overmolding
Earphone cables are classic examples of thin-wall products. The protective outer plastic layer is remarkably thin, yet it must protect delicate internal conductors while enduring constant daily tugging and bending. Standard horizontal molding machines struggle with this level of delicate insert positioning, making the high-speed vertical injection molding machine the ideal industry standard.
1. Gravity-Assisted Precision Positioning
In a vertical injection molding machine, the molds are clamped horizontally. This allows gravity to work as a natural assistant. When miniature earphone wires and metal pins are placed into the mold, they remain securely in their designated positions without shifting or tilting. This guarantees that the overmolded outer layer has a perfectly uniform thickness, eliminating defects like exposed wires.
2. High-Speed, High-Pressure for Thin-Wall Success
Because the protective layer around the earphone wire is so thin, the molten plastic cools down almost instantly upon entering the mold. If the injection speed is too slow, the material will solidify before completely filling the cavity, resulting in short shots or structural flaws. High-speed vertical machines inject the material in a fraction of a second, ensuring a flawless, smooth finish with zero air pockets or flashing.
3. Rapid Cycles for Mass Production
Earphone cables are mass-produced consumer electronics accessories that demand strict manufacturing efficiency. High-speed vertical injection molding machines utilize optimized hydraulic or all-electric systems to achieve ultra-short 15-to-30-second cycle times. This allows manufacturers to scale up capacity drastically while maintaining near-perfect yield rates—the true driving force behind making high-quality earphones affordable worldwide.
Setting the Industry Benchmark for High-Quality Cable Production
In the highly competitive market of digital cable and 3C electronics manufacturing, MINHUI has utilized its deep technical expertise in vertical machinery to develop high-speed vertical injection molding machines tailored specifically for these high-precision, thin-wall overmolding applications.
MINHUI’s high-speed vertical injection molding machines provide micron-level accuracy in both clamping force and injection control. Their stable temperature regulation and precise pressure systems perfectly match the high-speed processing requirements of TPE and TPU elastomers. Whether your goal is to prevent wire separation through tight encapsulation or to meet rigorous waterproof ratings, MINHUI vertical injection molding machines provide global manufacturers with low-energy, high-return automated production solutions.
