Pressure Variation: What to Record for Technical Support

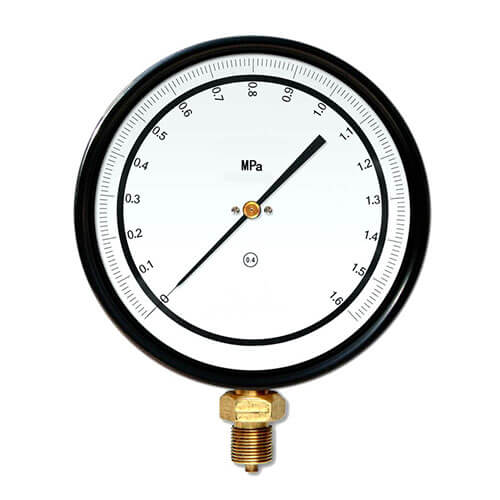

Pressure Instability in Vertical Injection Molding Machines

A useful pressure-variation report identifies the signal, operating state and accompanying part result. A description such as “pressure unstable” is not enough to identify the cause or choose a repair.

Identify the Signal

Record machine model, injection unit and screw option, controller version if relevant, displayed units and the signal name. Clarify hydraulic, specific melt or cavity pressure, and distinguish selected values from measured or calculated values.

Build a Comparable Record

  • Approved baseline process and when the change was first observed.
  • Equivalent good and affected cycles, with timestamps and the same scale and sampling conditions where traces are available.
  • Material grade and lot, tooling, auxiliaries and relevant recent changes.
  • Filling, transfer, holding, recovery, temperature and alarm records appropriate to the symptom.
  • Part mass, dimensions, short shots, flash or other findings linked to the recorded cycles.

Prepare the Service Handoff

Separate observations, actions already taken and untested explanations. Supply existing maintenance or fluid-condition records when relevant. Let the responsible technical personnel specify further checks using the model documents and approved procedures.

Do not reproduce an intermittent problem by bypassing protections, changing relief settings or opening pressurized connections. This checklist is for evidence preparation; it is not a valve-calibration or nozzle-repair procedure.

Service Questions

Does a Changing Peak Value Prove Pressure Control Is Faulty?

No. Verify the signal definition, cycle state, process demand and measurement basis before assigning a fault.

Should I Send Only a Photograph of One Pressure Number?

Include the units, machine state, baseline and related part findings. A single unlabelled reading loses much of the context needed for assessment.
