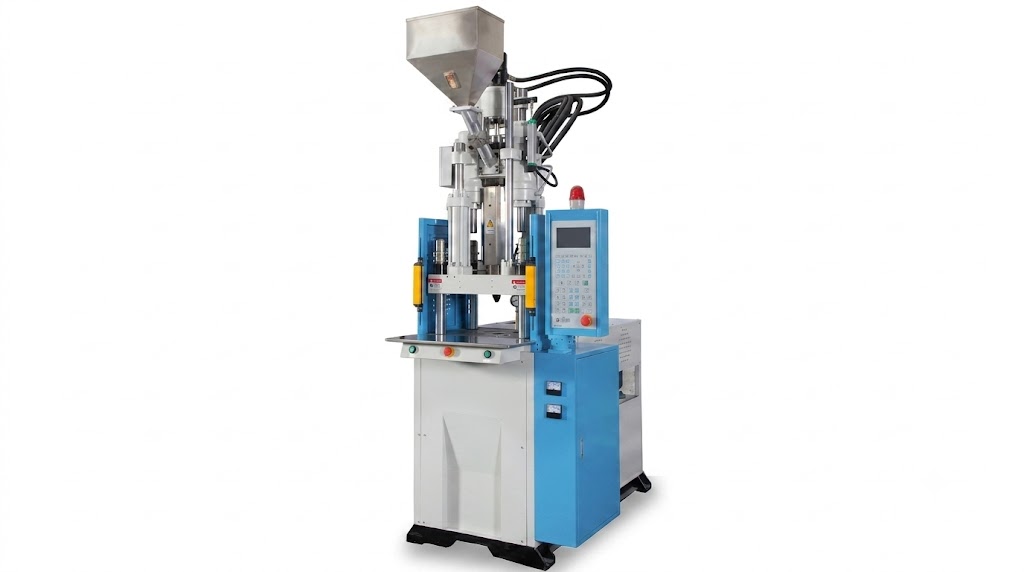

Proper vertical injection machine installation is essential for production efficiency. To ensure long-term stability and peak performance, proper installation is non-negotiable.
As a leading specialist in injection solutions, MINHUI provides this professional guide to help global users navigate the essential steps of machine placement, electrical configuration, and initial commissioning.
1. Spatial Layout and Leveling
The physical environment is the foundation of machine precision.
- Clearance: Position the vertical injection molding machine on a flat, solid floor. Ensure a minimum clearance of 50cm (20 inches) from walls or corners to allow for heat dissipation and maintenance access.
- Vibration Control: Use the provided anti-vibration pads under the four corners of the machine base.
- Leveling: Use a spirit level to calibrate the worktable. A perfectly balanced machine prevents uneven mechanical wear and ensures consistent molding quality.
2. Electrical Integration and Motor Rotation
Electrical standards vary globally (e.g., 380V/50Hz, 460V/60Hz), so professional wiring is critical.
- Independent Circuit: The machine must be connected to an independent fuse switch. Do not share power with other heavy equipment to avoid voltage fluctuations.
- Phase Matching: For a standard 380V/50Hz three-phase setup, the motor and heating power may require separate wiring (with heating often using a 220V single-phase connection). Always match the wiring to your local industrial voltage.
- Rotation Check: After wiring, briefly start the motor to verify the rotation direction against the arrow on the motor casing. If it rotates in reverse, simply swap any two of the three power lines.
3. Cooling System Installation
Thermal management is vital for thermoplastic processing.
- Cooling Tower Selection: The capacity of your cooling tower must match the total flow requirements of your machinery.
- System Connection: Ensure all cooling lines are securely connected to maintain stable temperatures for both the molds and the hydraulic system.
4. Hydraulic Oil Filling and Maintenance
Hydraulic oil is the “lifeblood” of your vertical injection molding machine.
- Initial Filling: Open the tank cover and fill with SAE68 or equivalent high-grade hydraulic oil until the level is above the red line on the gauge.
- Routine Checks: During mass production, check the oil level monthly. If it drops below the red line, refill immediately.
- Annual Service: After one year of operation, perform a full oil change and thoroughly clean the oil filters to prevent valve blockages.
5. Parameter Setup and Trial Run
Before leaving the factory, MINHUI machines are preset with baseline parameters for pressure, speed, stroke, and temperature.
- Fine-Tuning: Once the first four steps are complete, you can calibrate the injection settings based on the specific requirements of your product.
- Professional Support: Success in mold testing and operator training often requires expert guidance.
Technical Support Notice
Proper installation is the cornerstone of equipment longevity. As a professional vertical injection molding machine manufacturer, MINHUI offers comprehensive support for machine adjustment, mold testing, and staff training worldwide.
