Which material, TPR or TPE, is right for your injection molding line?

When selecting materials for flexible, soft-touch, or rubber-like B2B components, two common options frequently emerge: Thermoplastic Rubber (TPR) and Thermoplastic Elastomer (TPE). While both offer the processing ease of plastics and the tactile performance of traditional vulcanized rubber, subtle material and processing differences can significantly impact your production efficiency, tooling setup, and final product yield.

If you are evaluating TPR vs TPE for your next manufacturing run, understanding how these materials behave inside the barrel and mold—and choosing the right machinery—is essential. Here is a comprehensive technical comparison of thermoplastic rubber vs thermoplastic elastomer, along with machinery selection guidance for vertical injection molding.

1. Chemical structure directly dictates material properties and performance.

At a foundational level, the TPR TPE difference stems from their chemical formulations. While “TPE” is technically a broad umbrella category encompassing various soft polymers, in practical injection molding terminology, TPE usually refers to Styrenic Block Copolymers blended with polypropylene (SEBS/SBS blends), whereas TPR often specifically refers to SBS-based modified rubbers.

TPE (SEBS-based) features hydrogenated bonds, giving it superior UV degradation resistance, higher heat tolerance, and excellent long-term weatherability. It is ideal for outdoor equipment, medical devices, and premium automotive interiors.

TPR (SBS-based) retains a molecular structure closer to natural rubber. It delivers high resilience, excellent elasticity, and superior slip resistance, though it degrades faster under prolonged direct sunlight or high temperatures.

2. Processing Differences in Injection Molding

When executing TPE vs TPR injection molding, your machine setup, melt temperature, and mold design require distinct adjustments to maintain dimensional stability and prevent flash

Melt Temperature Baseline:

       TPR Melt Temp:  160 °C – 200 °C  (Lower shear heat sensitivity)

       TPE Melt Temp:  180 °C – 230 °C  (Requires higher thermal energy)

Melt Temperature & Shear Rate

TPR Processing: TPR flows easily at lower temperatures (160 ℃ – 200 ℃). However, because SBS molecules are sensitive to excessive shear heat, high screw speeds can lead to material degradation or surface streak marks.

TPE Processing: TPE requires slightly higher processing temperatures (180 ℃ – 230 ℃) due to the higher melting threshold of SEBS. It exhibits strong shear-thinning behavior: increasing injection speed reduces melt viscosity significantly, helping fill complex thin-wall cavities.

Screw Design & Shrinkage

Both materials process well using standard general-purpose screws with compression ratios between 2.0:1 and 2.5:1. However, TPE generally exhibits a slightly higher shrinkage rate (1.5% – 3.5%) compared to TPR (1.0% – 2.5%). Precise hold pressure calibration is vital to prevent sink marks on thick-walled sections.

3. Cost & Typical Application Scenarios

Choosing between TPR vs TPE material options often balances long-term performance against raw material cost:

Cost Profile: Commodity-grade TPR raw material is generally 15% to 30% lower in cost than medical/outdoor-grade TPE. This makes TPR a prime choice for high-volume consumer goods where extreme environmental resistance is unnecessary.

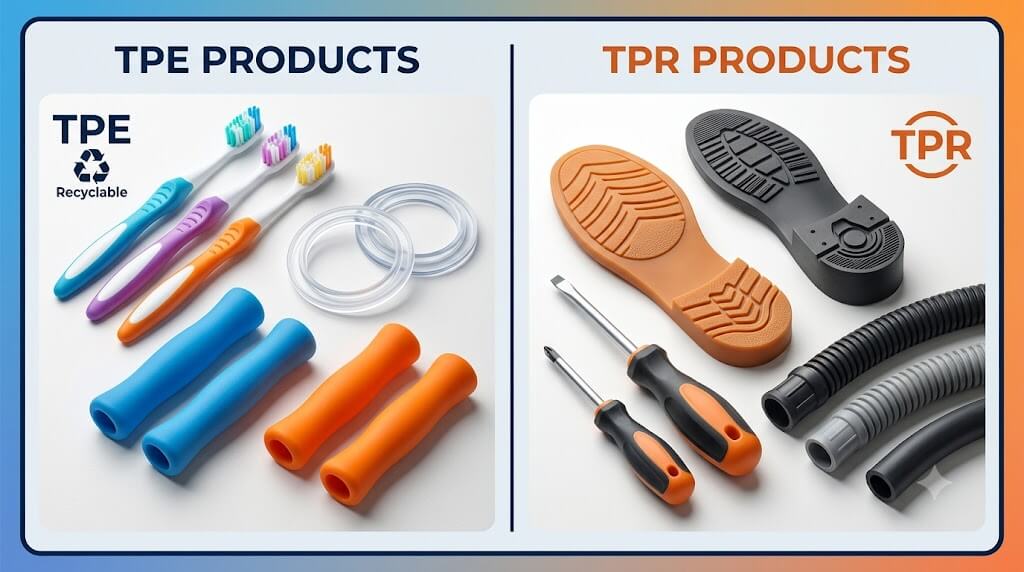

TPR Applications: Shoe soles, tool handle grips, caster wheels, toy components, and soft-touch seals.

TPE Applications: Overmolded toothbrush handles, automotive weather-stripping, medical tubing/valves, wire jacketing, and HVAC seals.

4. Why MINHUI Vertical Injection Molding Machines Excel with TPR & TPE

Processing flexible elastomers presents unique production challenges—such as inserting metal pins, cable terminals, or hard plastic substrates without core shift or flash. MINHUI vertical injection molding machines are purpose-built to address these exact requirements.

Precision Clamping for Soft Elastomers

Because TPE and TPR have high melt mobility, slight parting-line misalignment can cause flashing. MINHUI’s vertical clamping units feature rigid four-tie-bar construction and precise proportional hydraulic controls, ensuring uniform clamping force distribution and zero mold tilt.

Ideal for Overmolding (Insert Molding)

A major application for both materials is soft-touch overmolding (e.g., molding TPE/TPR over PP or ABS cores). MINHUI’s vertical clamp / vertical injection or rotary table models allow operators to lay inserts flat in the lower mold safely and quickly. Gravity holds the insert in place, completely eliminating part dislocation during mold closing.

Optimized Barrel Temp Control & Screw Torque

MINHUI machines feature multi-zone PID temperature controls and high-torque hydraulic or servo screw drives. This allows precise thermal control down to± 1℃, preventing thermal degradation of delicate SBS/SEBS polymer chains while ensuring thorough color masterbatch mixing.

5. Recommended Processing Parameters on MINHUI Equipment

To help B2B molders achieve zero-defect production, here is a starting parameter baseline for MINHUI vertical injection molding machines:

Making the Right Decision for Your Factory

When deciding between TPR vs TPE, use a straightforward rule of thumb: select TPR for cost-sensitive, high-grip, indoor applications; choose TPE when your product demands weather resistance, high thermal stability, or biocompatibility.

Regardless of which resin you select, machine stability determines your yield. MINHUI vertical injection molding machinery provides the precision temperature control, smooth insert placement, and reliable clamping force required to turn soft elastomers into flawless final parts.
