In the injection molding process, many operators focus heavily on clamping force, injection speed, or holding time, often overlooking an invisible “quality control valve” known as back pressure. For vertical injection molding machines, back pressure settings do not just dictate the physical state of the melt; they directly determine the yield rate and final quality of the molded parts.
How exactly does back pressure influence the mold filling process? In practical production, how does a brand like MINHUI, known for high-precision injection molding solutions, suggest balancing these parameters? This article delves into the core logic of back pressure in vertical injection molding.
Understanding Injection Back Pressure

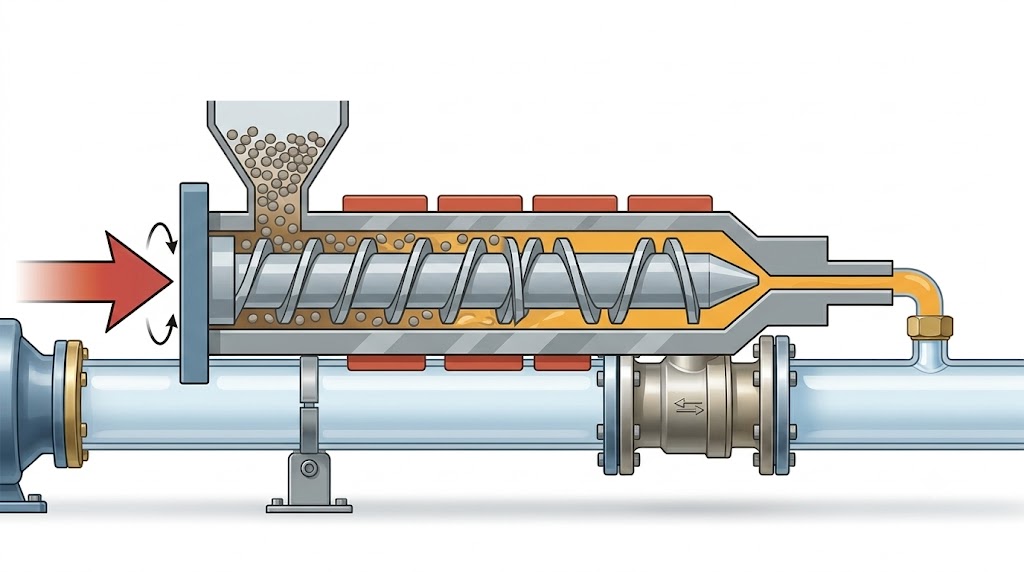

Simply put, back pressure is the resistance the screw encounters as it retreats during the material feeding (plasticizing) stage. By adjusting the oil return throttle valve, we can control the magnitude of this resistance. While it seems like a minor parameter, it acts as the fundamental “stabilizer” for melt plasticization quality.
How Proper Back Pressure Improves Product Quality
Applying the correct amount of back pressure is a prerequisite for achieving high-quality parts on a vertical injection machine. A reasonable setting delivers five significant advantages:
- Compacts the Melt for Dimensional Stability Appropriate resistance forces the screw to “compact” the molten material inside the barrel as it retracts. This increases the melt density, ensuring a more precise shot volume, which in turn guarantees the weight and dimensional stability of the product, reducing rejection rates.
- Expels Gases to Eliminate Surface Defects Raw materials often contain trace moisture or volatiles. Proper back pressure effectively “squeezes out” gases trapped within the melt. This is crucial for reducing surface silver streaks (splay marks) and internal bubbles, significantly improving the gloss and uniformity of the product.
- Enhances Plasticization and Color Mixing Back pressure slows down the screw’s retreat speed, providing the melt with more shear heat and plasticizing time. For processes using color powder or masterbatches, this ensures the pigment mixes thoroughly with the melt, preventing color streaks or uneven spot issues.
- Reduces Shrinkage and Short Shots By increasing back pressure, the compactness of the melt improves. This enhances fluidity during mold filling (as the melt temperature becomes more uniform), effectively reducing surface sink marks and solving issues where the product periphery or ribs are not fully filled.
- Optimizes Melt Temperature Uniformity Back pressure increases internal friction heat, which helps raise the overall temperature of the melt and makes it more consistent. This eliminates cold slugs on the product surface, ensuring a flawless appearance.
Negative Effects of Excessive Back Pressure
While back pressure is beneficial, “too much of a good thing” can be harmful. In MINHUI’s technical application cases, we often find that equipment wear and process failures stem from settings that are too high:
- Material Thermal Degradation: Excessively high back pressure causes a sharp rise in pressure at the front of the barrel and uncontrolled shear heat. For heat-sensitive materials (like PVC or POM), this leads to decomposition, yellowing, or black spots. Colorants may also degrade, causing color deviation.
- Reduced Production Efficiency: The screw retracts slower, prolonging the plasticizing time. This extends the entire injection cycle, reducing the output per hour.
- Drooling and Leakage: High melt pressure can cause “drooling” or salivation at the nozzle. This can clog the sprue with cold material during the next shot or cause cold slug spots on the part. Severe cases can lead to nozzle leakage, damaging the heater bands.
- Increased Mechanical Wear: Long-term excessive back pressure significantly increases mechanical wear on the pre-plasticizing mechanism, screw, and barrel, shortening equipment life.
Problems Caused by Low Back Pressure
Conversely, if back pressure is set too low in an attempt to speed up production, the performance of the vertical injection molding machine cannot be fully utilized:
- Poor Plasticization and Low Density: The screw retracts too quickly, preventing the melt from being compacted. The material flowing to the front of the barrel becomes loose, low-density, and full of trapped air.
- Unstable Injection: Due to uneven melt density, the shot volume fluctuates with every cycle, causing product weight to vary and making dimensional tolerances impossible to control.
- Frequent Appearance Defects: The product surface is prone to sink marks, silver streaks, cold flow marks, and uneven gloss.
- Internal Bubbles and Short Shots: Because air is not expelled and the melt is loose, vacuum bubbles easily form inside the product. Additionally, intricate ribs or edges are prone to short shots (incomplete filling).
How to Scientifically Set Back Pressure
In the actual operation of vertical injection molding machines, there is no single “magic number.” MINHUI advises operators to adjust dynamically based on raw material properties, drying conditions, product structure, and quality requirements.
General Reference Standards:
- Basic Range: A back pressure setting between 3-15kg/cm² is generally considered a safe operating range.
- Signals to Increase: When you observe slight silver streaks, color mixing issues, sink marks, or large fluctuations in product size and weight during continuous production, you should appropriately increase the back pressure.
- Signals to Decrease: When nozzle leakage or drooling occurs, the melt shows signs of overheating decomposition (discoloration), or the screw return speed is too slow affecting the cycle time, you should consider lowering the back pressure.
Conclusion
Back pressure is the lever that balances “efficiency” and “quality” in the vertical injection molding process. Only by deeply understanding how back pressure affects melt morphology can one fully master high-performance equipment like MINHUI vertical injection molding machines to produce perfect parts. In daily machine tuning, following the principle of “start low, observe, and fine-tune” is the path to becoming an injection molding expert.
